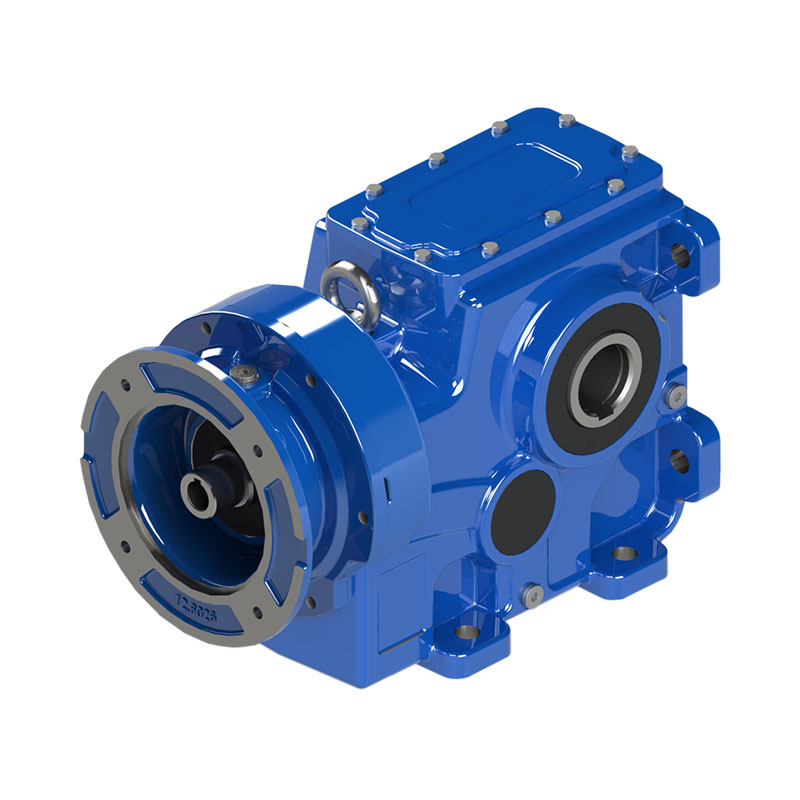

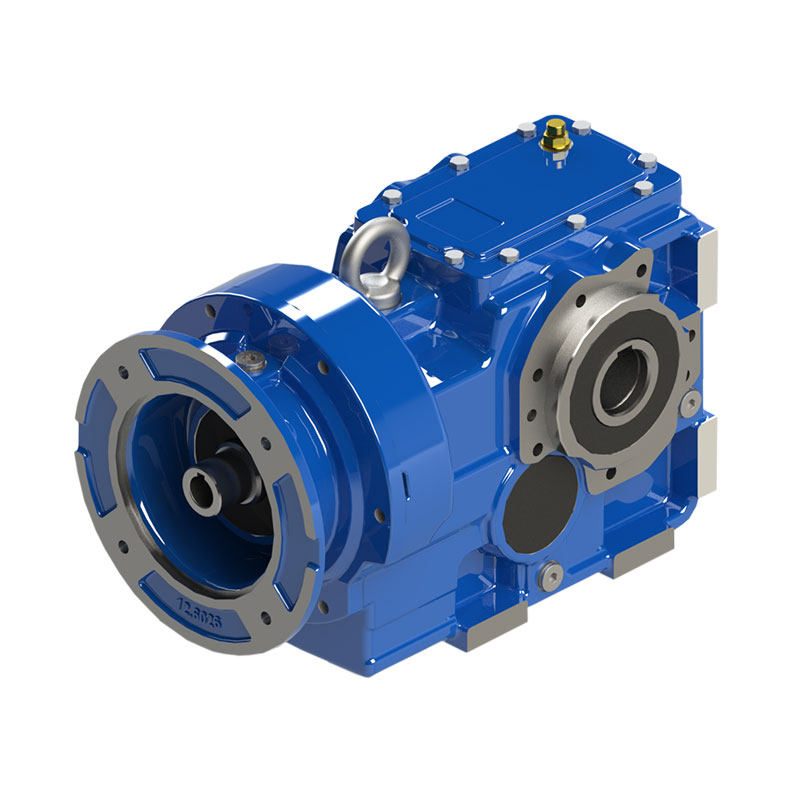

Helical Bevel Gear Units

K Series

It may be the drive solution in various conveyors used for heavy load transfer where movement is to be directed at 90°.

  • Helical bevel gear units with 90° input and output axis range.
  • Casing with feet, flange options.
  • A rigid structure in case.
  • System resistance calculations are made in accordance with ISO, DIN and Niemann standards.
  • Different input options may be provided (Coupled motor, IEC, PAM, W, Servo motor connected, ...).
  • Different output options available (Solid shaft, Hollow shaft, With shrink disc, ...).
  • Different mounting accessories available (B5 flange, B14 flange, Torque arm and Platforms,...).
  • Bodies are manufactured from sfero (GGG 40-50) and peak (GG 20-25).
  • Gears are made of cast and 21NiCrMo2 case-hardening steel.
  • High-quality bearing and sealing components are used.
  • Special requests of the customers may be considered
For more information:
Contact Our Sales Representative

Contact Our Sales Representative

Technical Specs
MinMax
Power [kW]0,1290
Moment [Nm]65613842
Output Speed [r/min]7,9252
Related Documents
  K Series Catalogue (PDF, 23.8 Mb)   A/F - D/M - K Series Maintenance & Operation Instructions (EN) (PDF, 31.2 Mb)   A/F - D/M - K ATEX Series Maintenance & Operation Instructions (EN) (PDF, 33.2 Mb)   K Series Declaration of Conformity   Spare parts list for K series
